| Products showroom>>Microscopes |
 |

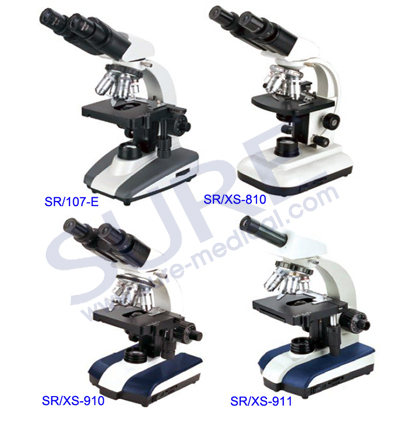

| SR/107E & SR/XS-810,910,911 |
|
Remark |
Code |
| SR/107-E |
SR/XS-810 |
SR/XS-910 |
SR/XS-911 |
| Viewing Head |
Monocular((45°),Rotatable(360°) |
|
|
|
●
|
| |
Compensation Free Binocular Head(30°) |
●
|
●
|
●
|
|
| Nosepiece |
Quadruple |
●
|
●
|
●
|
● |
| Eyepiece |
WF 10X, (WF16X For Choice) |
● |
● |
● |
● |
| Objective |
Achromatic: Din 4X |
● |
● |
● |
● |
| Stage |
Stage + Moving Scale |
|
|
|
|
| Double Layer Mechanical Stage |
130x125mm |
|
130x125mm |
130x125mm |
| Focusing |
Coarse adjustment Forcusing 15mm Fine Adjustment Focusing1.6m
|
|
● |
|
|
| Coaxial Coarse & Fine Adjustment |
Range 30mm |
|
Range 20mm |
Range 20mm |
| Illumination & Condenser |
Abbe NA 1.25 6V/20W Halogen Lamp, Adjustable Brightness |
● |
|
|
|
| Abbe NA 1.20 6V/20W Halogen Lamp, Adjustable Brightness |
|
● |
|
● |
| Powder |
AC Input 220V / 110V, DC Output 6V |
● |
● |
|
● | |
|
