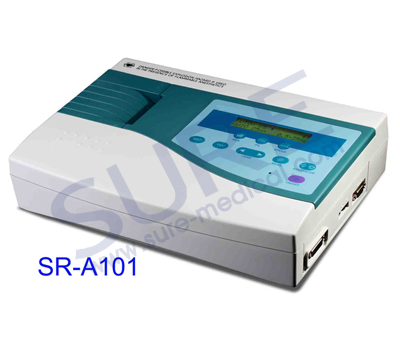

| SRA101 Single Channel Digital Electrocardiograph |
| Code |
Product Name |
Remark |
| SR101 |
Single Channel Digital Electrocardiograph |
Input Circuit: Isolated |
| Safety Level: IEC Class 1 Type CF |
| Input Impedance: ≥50MΩ |
| Imput Circuit Current: ≤50nA |
| Noise Level: ≤15μVp-p |
| Patient urrent Leakage: <10μA |
| CMRR: >100dB |
| Frequency Response: 0.05 - 150Hz |
| Time Constant: ≥3.2 Second |
| Polarizing Voltage: ±500mV |
| Sensitivity: 5, 10, 20mm / mV ±3% |
| Paper Speed: 25mm/s, 50mm/s |
Power Requirements:
AC: 220V(110), 50-60Hz
DC: 12V Rechargeable Battery |
| N.W. (kg): 2.69 |
| Dimension(LxWxH): 310x230x70mm | |
|
